Magento Plugin

Accept payments on your Magento 2 store with Omise. Complete support for credit cards, bank transfers, e-wallets, and installments with easy Composer installation.

Overview

Features:

• Magento 2.3.x and 2.4.x support
• Composer installation
• All Omise payment methods
• Multi-store configuration
• Admin order management
• Automatic refunds
• 3D Secure support
• Mobile-optimized checkout

Prerequisites

Requirements:

• Magento 2.3.x or 2.4.x (Note: Magento 2.3 reached EOL in September 2022, 2.4.x recommended)
• PHP 7.2 or higher (PHP 8.2+ compatibility added in v3.8.0)
• Composer installed
• Active Omise account
• SSH or terminal access
• Admin access to Magento

Installation

Via Composer (Recommended)

# Navigate to Magento root directory
cd /path/to/magento

# Require Omise module
composer require omise/omise-magento

# Enable module
php bin/magento module:enable Omise_Payment

# Run setup upgrade
php bin/magento setup:upgrade

# Compile code
php bin/magento setup:di:compile

# Deploy static content
php bin/magento setup:static-content:deploy

# Clear cache
php bin/magento cache:flush

Manual Installation

1. Download latest release from GitHub
2. Extract to app/code/Omise/Payment
3. Run setup commands as above

Configuration

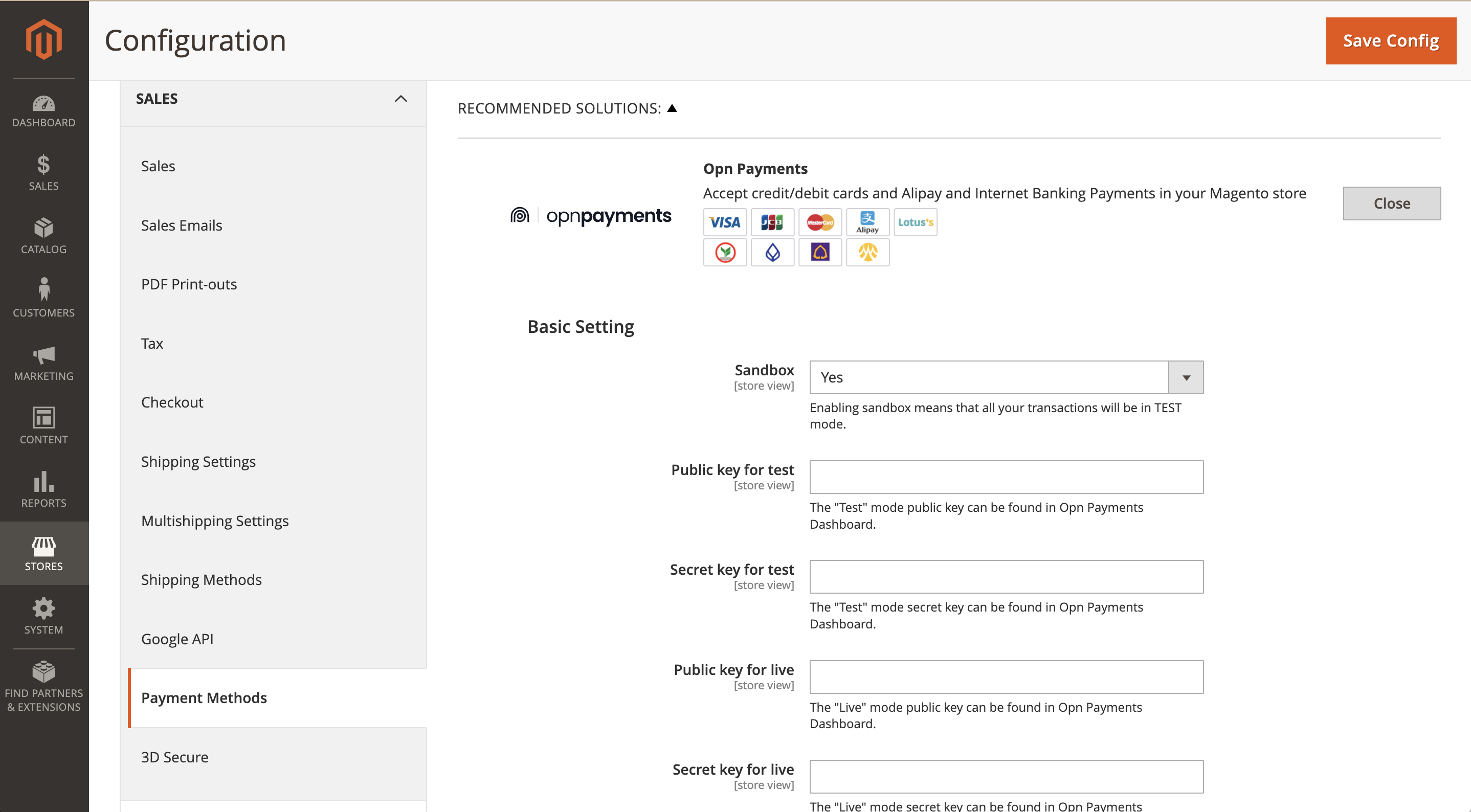

Step 1: Access Payment Settings

1. Log in to Magento Admin
2. Navigate to Stores → Configuration
3. Under Sales, click Payment Methods
4. Find Omise Payment Gateway section

Step 2: Configure API Keys

Basic Settings:
- Enabled: Yes
- Title: Omise Payment Gateway
- Environment: Sandbox (for testing)

API Configuration:
- Public Key (Test): pkey_test_xxxxx
- Secret Key (Test): skey_test_xxxxx
- Public Key (Live): pkey_live_xxxxx (add later)
- Secret Key (Live): skey_live_xxxxx (add later)

Get API Keys:

1. Visit Omise Dashboard
2. Go to Settings → Keys
3. Copy test keys for initial setup
4. Copy live keys when ready to launch

Step 3: Enable Payment Methods

Credit/Debit Cards:

Enable: Yes
Title: Credit/Debit Card
3D Secure: Enabled
Payment Action: Authorize and Capture
Accepted Cards: Visa, Mastercard, Amex, JCB

Internet Banking:

Enable: Yes
Title: Internet Banking
Supported Banks: All Thai Banks
Instructions: "You will be redirected to your bank"

E-Wallets:

Enable TrueMoney Wallet: Yes
Enable Rabbit LINE Pay: Yes
Enable ShopeePay: Yes

Installments:

Enable: Yes
Minimum Order: 3000 THB
Available Terms: 3, 6, 10 months

Step 4: Configure Webhooks

Webhook URL Format:

https://yourstore.com/omise/webhook/callback

Setup in Omise Dashboard:

1. Go to Settings → Webhooks
2. Click Add Webhook
3. Enter webhook URL
4. Select events:
   • charge.complete
   • charge.failed
   • refund.create
5. Save webhook

Test Webhook:

# Test webhook endpoint
curl -X POST https://yourstore.com/omise/webhook/callback \
  -H "Content-Type: application/json" \
  -d '{"key":"charge.complete","data":{"id":"chrg_test_xxx"}}'

Step 5: Order Status Mapping

Configure how Omise payment statuses map to Magento order statuses:

Payment Status Mapping:
- Pending → Pending Payment
- Authorized → Processing
- Captured → Processing
- Successful → Complete
- Failed → Canceled
- Refunded → Closed

Custom Status Mapping:

// app/code/Omise/Payment/etc/config.xml
<default>
    <payment>
        <omise>
            <order_status>
                <pending>pending_payment</pending>
                <successful>processing</successful>
                <failed>canceled</failed>
            </order_status>
        </omise>
    </payment>
</default>

Testing

Test Mode Setup

Configuration:
✓ Set Environment to "Sandbox"
✓ Use test API keys
✓ Enable debug logging
✓ Test all payment methods

Test Cards

Successful Payment:
Card: 4242 4242 4242 4242
Expiry: 12/28
CVV: 123

Failed Payment:
Card: 4000 0000 0000 0002

3D Secure Enrollment Failure:
Card: 4111 1111 1115 0002 (Visa)

3D Secure Authentication Failure:
Card: 4111 1111 1114 0003 (Visa)

Test Order Flow

1. Create Test Order

   • Add product to cart
   • Proceed to checkout
   • Fill shipping information
   • Select Omise payment method

2. Complete Payment

   • Enter test card details
   • Complete 3D Secure if prompted
   • Verify payment success

3. Verify in Admin

   • Check order created
   • Verify order status
   • Check payment details
   • Review transaction info

Multi-Store Configuration

Separate Configuration Per Store

Store 1 (Thailand):
- Currency: THB
- Payment Methods: All
- API Keys: Thailand account
- Language: English/Thai

Store 2 (Singapore):
- Currency: SGD
- Payment Methods: Cards, Wallets
- API Keys: Singapore account
- Language: English

Configure Per Store View:

1. Select store view in scope selector
2. Uncheck "Use Website" for settings you want to override
3. Enter store-specific values
4. Save configuration

Order Management

Viewing Payment Information

Order Details:

• Omise Charge ID
• Payment method used
• Transaction amount
• Transaction date
• Payment status
• Customer billing details

Access Payment Info:

Orders → Select Order → Payment Information section

Processing Refunds

Full Refund:

1. Open order
2. Click Credit Memo
3. Select items to refund
4. Click Refund Offline or Refund
5. Omise processes refund automatically

Partial Refund:

1. Open order
2. Click Credit Memo
3. Enter custom amounts
4. Add refund reason
5. Submit refund

Refund Limitations:

Cards: Refundable within 120 days
Internet Banking: Not refundable
E-Wallets: Varies by provider
Installments: Special process required

Advanced Features

Payment Capture

Automatic Capture (Default):

Payment Action: Authorize and Capture
- Charges immediately
- Funds held for settlement
- Standard flow

Manual Capture:

Payment Action: Authorize Only
- Authorizes payment
- Manual capture later
- For pre-orders
- 7-day authorization period

Manual Capture Process:

1. Order placed (authorized only)
2. Review order in admin
3. Click "Invoice"
4. Select "Capture Online"
5. Payment captured

Saved Cards

Enable Saved Cards:

Configuration:
Payment Methods → Omise → Credit Card
✓ Enable Saved Cards
✓ Customer Can Delete Cards

Customer Experience:

• Save card during checkout
• View saved cards in account
• Use saved card for future orders
• Delete cards anytime

Security:

• Cards tokenized by Omise
• No card data stored locally
• PCI compliant
• Secure token storage

Custom Checkout Fields

Add custom fields to payment section:

// app/code/Omise/Payment/view/frontend/layout/checkout_index_index.xml
<item name="custom-field" xsi:type="array">
    <item name="component" xsi:type="string">Magento_Ui/js/form/element/abstract</item>
    <item name="config" xsi:type="array">
        <item name="customScope" xsi:type="string">omisePayment</item>
        <item name="template" xsi:type="string">ui/form/field</item>
        <item name="elementTmpl" xsi:type="string">ui/form/element/input</item>
    </item>
    <item name="provider" xsi:type="string">checkoutProvider</item>
    <item name="dataScope" xsi:type="string">omisePayment.custom_field</item>
    <item name="label" xsi:type="string" translate="true">Custom Field</item>
    <item name="sortOrder" xsi:type="string">1</item>
</item>

Customization

Payment Method Display

Reorder Payment Methods:

Configuration → Payment Methods

Sort Order:
1. Credit Card (Sort Order: 1)
2. Internet Banking (Sort Order: 2)
3. TrueMoney Wallet (Sort Order: 3)
4. Rabbit LINE Pay (Sort Order: 4)

Custom Payment Titles:

Credit Card: "Pay with Credit/Debit Card"
Internet Banking: "ชำระผ่านธนาคาร (Bank Transfer)"
TrueMoney Wallet: "TrueMoney Wallet"

Payment Form Customization

Customize the appearance of payment forms to match your store's branding.

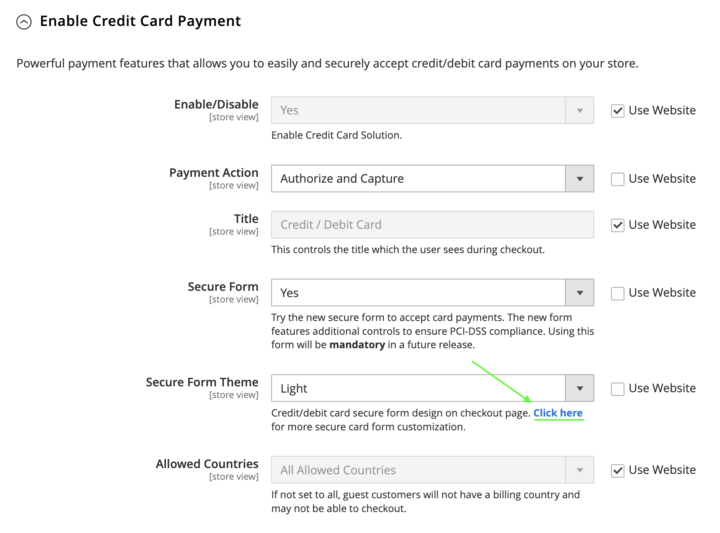

Access Form Customization:

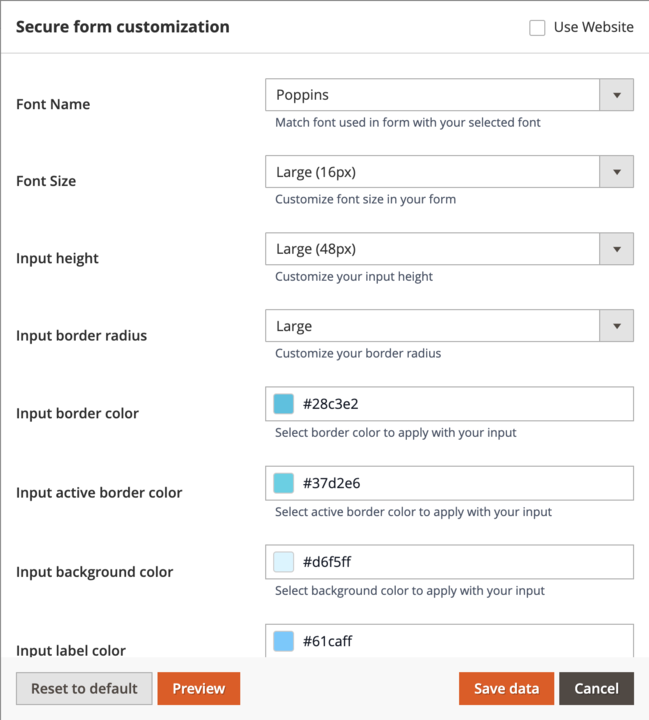

Customize Form Elements:

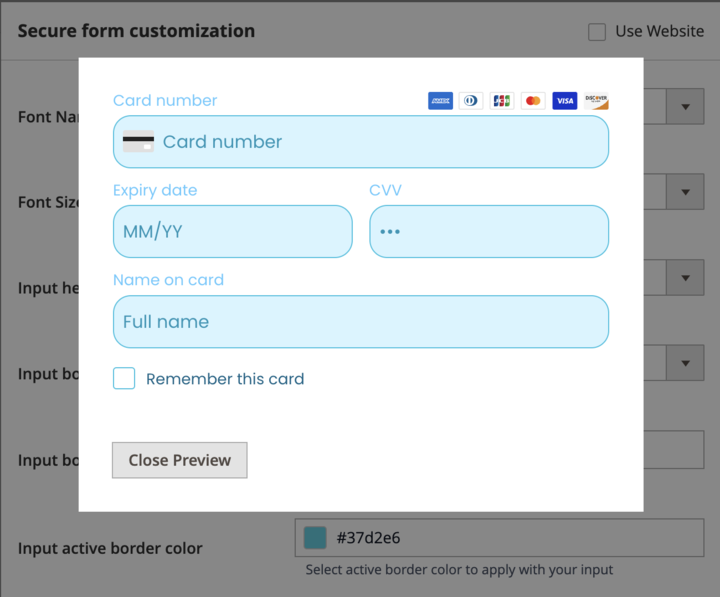

Preview Your Changes:

Custom CSS:

/* app/design/frontend/[Vendor]/[Theme]/web/css/source/_module.less */

.payment-method-omise {
    .payment-method-title {
        font-weight: bold;
        color: #FF5722;
    }

    .payment-method-content {
        padding: 15px;
        border: 2px solid #e0e0e0;
    }
}

Email Templates

Customize Payment Emails:

Marketing → Communications → Email Templates

Create New Template:
- Template: New Order
- Customize payment info section
- Add Omise branding
- Save template

Email Variables:

{{var payment_html}}
{{var order.getPayment().getMethodInstance().getTitle()}}
{{var order.getPayment().getAdditionalInformation('omise_charge_id')}}

Troubleshooting

Common Issues

Issue: Module not showing in payment methods

Solution:
1. Clear cache: php bin/magento cache:flush
2. Recompile: php bin/magento setup:di:compile
3. Check module enabled: php bin/magento module:status
4. Verify API keys entered
5. Check Magento logs: var/log/system.log

Issue: Webhook not updating order status

Solution:
1. Verify webhook URL accessible
2. Check webhook configured in Omise Dashboard
3. Review webhook logs in Magento
4. Test webhook manually
5. Check server firewall settings

Issue: Payment failing at checkout

Solution:
1. Check API keys correct
2. Verify payment method enabled in Omise account
3. Check currency supported
4. Review Magento error logs
5. Test in sandbox mode

Issue: Refund not processing

Solution:
1. Verify payment method supports refunds
2. Check refund within allowed timeframe
3. Ensure sufficient settlement balance
4. Review Omise Dashboard for errors
5. Try smaller refund amount

Debug Mode

Enable Debugging:

Stores → Configuration → Advanced → Developer
Developer Client Restrictions: No
Logging: Enabled

Omise Payment → Advanced Settings
✓ Debug Mode Enabled
✓ Log API Requests
✓ Log Webhook Events

View Logs:

# Magento logs
tail -f var/log/system.log
tail -f var/log/exception.log

# Omise specific logs
tail -f var/log/omise.log

Performance Optimization

Checkout Speed

Optimize Payment Loading:

✓ Enable Magento full page cache
✓ Use CDN for payment icons
✓ Minimize checkout steps
✓ Optimize JavaScript bundling
✓ Enable HTTP/2

Reduce Redirects:

✓ Use inline card forms
✓ Minimize external redirects
✓ Optimize webhook response time
✓ Cache payment method configurations

Database Optimization

Index Payment Tables:

-- Add index to improve payment queries
ALTER TABLE sales_order_payment ADD INDEX idx_omise_charge_id (last_trans_id);

Clean Old Logs:

# Remove old logs
php bin/magento log:clean --days=30

Security Best Practices

API Key Security

✓ Store keys in env.php (not database)
✓ Use different keys for test/live
✓ Rotate keys regularly
✓ Limit admin user access
✓ Monitor API key usage

Store Keys in env.php:

// app/etc/env.php
return [
    'payment' => [
        'omise' => [
            'live_public_key' => getenv('OMISE_LIVE_PUBLIC_KEY'),
            'live_secret_key' => getenv('OMISE_LIVE_SECRET_KEY'),
        ]
    ]
];

Checkout Security

✓ Force HTTPS on checkout
✓ Enable 3D Secure
✓ Implement CAPTCHA
✓ Use Magento security scan
✓ Keep Magento updated
✓ Monitor for fraud

PCI Compliance

✓ Never store card data
✓ Use Omise.js for card collection
✓ Maintain PCI SAQ-A compliance
✓ Regular security audits
✓ Keep SSL certificate valid
✓ Follow PCI DSS guidelines

Frequently Asked Questions

Q: Which Magento versions are supported?
A: Magento 2.3.x and 2.4.x are fully supported. Magento 1.x requires a different plugin.

Q: Can I use it with Magento Cloud?
A: Yes, the plugin works with Magento Cloud. Follow standard Composer installation.

Q: Does it work with multiple store views?
A: Yes, you can configure different settings per store view including API keys, payment methods, and currencies.

Q: Can I capture payments manually?
A: Yes, set Payment Action to "Authorize Only" and capture manually from order invoices.

Q: Are there any transaction limits?
A: Omise API limits apply. Contact support for higher limits. No plugin-specific limits.

Q: Can customers save multiple cards?
A: Yes, when saved cards feature is enabled, customers can save multiple cards securely.

Q: How do I switch from test to live mode?
A: Change Environment to "Live" and add live API keys in configuration. Test thoroughly in sandbox first.

Q: Does it work with B2B features?
A: Yes, the plugin works with Magento B2B features including company accounts and negotiable quotes.

Q: Can I customize the payment form?
A: Yes, through theme customization and layout XML. Some customizations may require PHP/JavaScript knowledge.

Q: What happens during Magento upgrades?
A: The plugin is generally compatible with Magento updates. Always test in staging environment first.

Q: Is there support for subscriptions?
A: Not built-in. For recurring payments, consider integrating Omise subscription API separately.

Q: Can I accept payments in multiple currencies?
A: Yes, configure different currencies per store view. Omise supports multiple currencies.

Next Steps

• PrestaShop Plugin - PrestaShop integration guide
• Dashboard Guide - Manage payments in dashboard
• API Documentation - Advanced integration options
• Testing Guide - Testing best practices

Additional Resources

• Omise-Magento GitHub
• Magento Marketplace
• Composer Documentation
• Support Center

---

Need help? Contact our support team at support@omise.co or visit the Help Center.
